Unless you operate the circuit so current flows through it, you cannot measure voltage drop. Because a digital multimeter’s battery cannot supply the current that normally flows through most circuits, digital multimeter tests usually cannot detect restrictions as accurately as a voltage drop test.
How much voltage drop is acceptable in a car?
Voltage drop should be checked with the circuit loaded and a fully-charged battery. In best case scenarios, voltage drop on a power side or ground side to a component through all connectors, and connections should not exceed 0.1V or 100mV, however most times 0.2V or 200Mv is acceptable.
What is the normal voltage drop when starting a car?
Voltage drop on the ground side of the starter circuit should be no more than 0.2 volts. But some manufacturers will take a voltage drop reading between 0.2 and 0.6 as acceptable for the ground side of the starter circuit. If you get a higher voltage drop reading, check the starter motor’s mounting bolts for tightness.
How do you fix voltage drop?
The simplest way to reduce voltage drop is to increase the diameter of the conductor between the source and the load, which lowers the overall resistance. In power distribution systems, a given amount of power can be transmitted with less voltage drop if a higher voltage is used.
What happens if voltage drop is too high?
Excessive voltage drop in a circuit can cause lights to flicker or burn dimly, heaters to heat poorly, and motors to run hotter than normal and burn out. This condition causes the load to work harder with less voltage pushing the current.
How many volts should a car battery lose overnight?
The no load voltage should be around 12 V. The voltage will drop with the headlight load, but no more than maybe 1 V. If its a new battery with a good charging system 12.8 to 12.6 is what you should expect. The problem is in order to save fuel a lot of charging systems only charge your battery 80% to save fuel.
What causes a voltage drop?
Causes of Voltage Drop Excessive dropping is due to increased resistance in a circuit, typically caused by an increased load, or energy used to power electric lights, in the form of extra connections, components, or high-resistance conductors.
Is 10 volts enough to start a car?
Usually No. 10 volts at the battery indicates that the battery has a bad cell. This reduces the total by the single cell voltage of 2.1 volts. Need at least 12 volts to start the car.
What is the formula for voltage drop?
To calculate voltage drop: Multiply current in amperes by the length of the circuit in feet to get ampere-feet. Circuit length is the distance from the point of origin to the load end of the circuit. Divide by 100. Multiply by proper voltage drop value in tables.
How can I check the voltage drop in my starter?

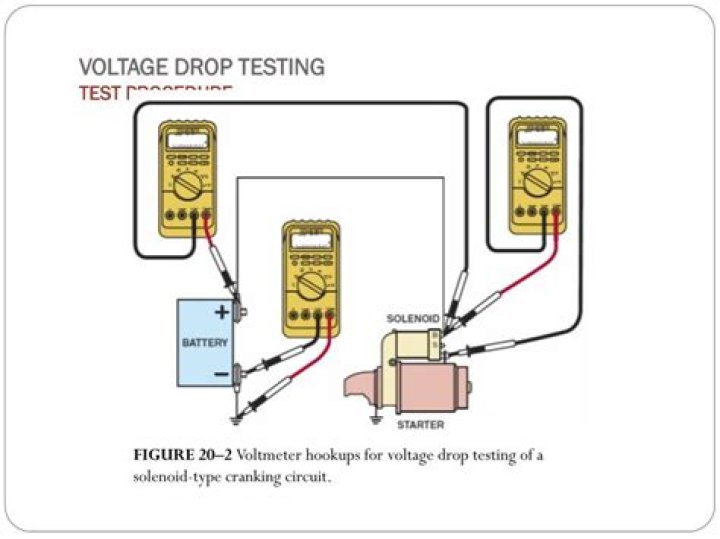

We can check total voltage drop in the starter circuit by connecting our postive meter lead to the positive battery post and the negative lead to the battery terminal stud on the starter and read the voltage while cranking the engine. Anything over.6 volts is an excessive voltage drop and can be isolated using the following steps.
How to perform a voltage drop test-help with automotive?
Now to check the negative side of the circuit. Total drop on the ground side should be .3 volts or less and can be checked by placing positive meter lead on starter housing and negative meter lead on battery ground post. Take your reading while cranking the engine, and be sure your connection at the starter is solid and clean.
How can you tell the voltage of a car battery?
Meter between the battery positive post and the clamp. You should see very little voltage there. With the lights up, the total draw on the battery is 15 amps or more. Any resistance between the clamp and the post will cause a measurable voltage drop. It shouldn’t be more than a few millivolts.
How do you use a meter to measure voltage drop?
You then can use the meter to hone in on where the drop is (e.g., position the probes between the positive battery post and positive battery terminal, then between the positive battery terminal and the ring connector on the other end of the cable, then between the ring connector and the starter post).
