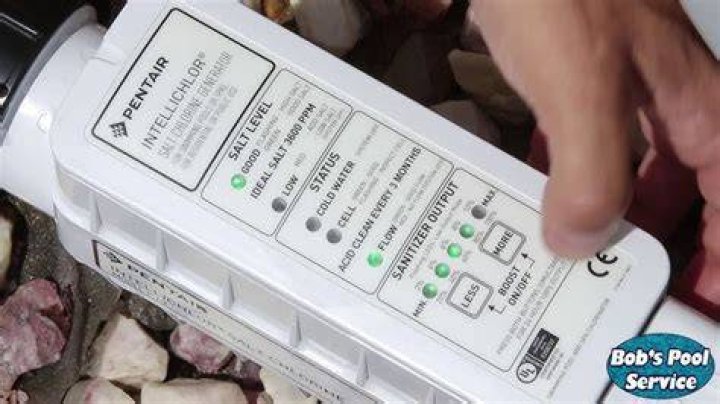

Press and hold the “More” button for 3 seconds to enter system status mode. All the lights will scroll across the panel, and then go dark. Only the “Power”, “Cell”, “Life”, and “Low” lights will be lit.
Do you turn salt cell off when adding salt?
When adding salt to the pool, make sure to turn off the salt chlorine generator, but leave the pool pump on to circulate and distribute the salt evenly throughout the pool. When pouring the salt into the pool, add it around the deep end to have it circulate through the main drain.
How can I tell if my Pentair Intellichlor is working?
The easiest way to be certain if the chlorinator is working is to make sure the cell is clean by checking the needle or production lights on the chlorinator box. When operating, you should also see bubbles (hypochlorite gas) inside the chamber, producing what looks like cloudy water – that’s chlorine being created!
What should Intellichlor be set at?
What should the salt level be? The intellichlor is set to function when the salt level is between 2800 ppm and 4500 ppm. Too little, it cannot make chlorine. Too much salt and it also cannot (should not) make chlorine and can cause additional voltage issues with your pool and equipment.
How long does an intellichlor Pentair ic40 last?
That means that the Pentair IC40 life is running out – limited life remaining. Under proper operation, the intellichlor should provide at least 10,000 hrs. of operation, which is 3-5 years of service. In many instances, you can extend the life if you monitor the level of chlorine properly and the salt and chemical balance level.
How to read the Pentair ic20 users manual?
: Pentair Pentair-Ic20-Ic40-Users-Manual-517950 pentair-ic20-ic40-users-manual-517950 pentair pdf Open the PDF directly: View PDF . Document Properties… Enter the password to open this PDF file.
When do the LEDs flash on the Pentair ic40?
The 3 salt levels LED’s Red, Yellow, and Green are designed to repeatedly flash for the about 2 minutes after every startup. Hence, wait for about 2½ minutes to allow the Pentair IC40 to properly sense the level of salt. After that, 1 of the 3 LED’s will be illuminated displaying salt level.
Where to get Pentair salt water chlorine generator?
A short to the point video explaining the functions of the Pentair Intellichlor system. This is the newest generation as of this date, some older units may not have all the functions or led’s. Openings, closings and everything in between, call Bob’s Pool Service at 732 251 0951 for all your in-ground swimming pool needs in Central NJ.
