How do you calculate kVA rating?

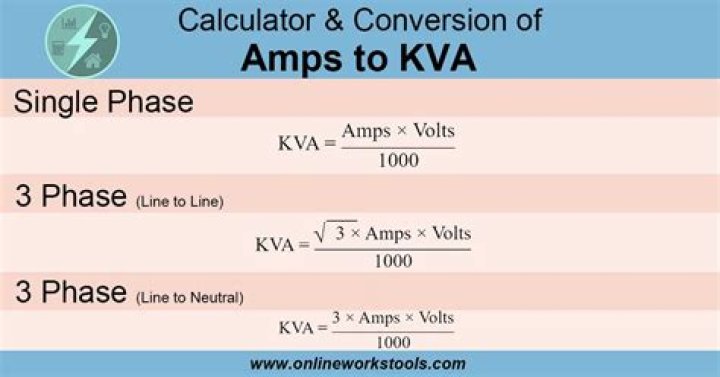

Calculate power rating in kilovolts-amperes, or “KVA,” when you know voltage and current rating. Use the formula: P(KVA) = VA/1000 where P(KVA) is power in KVA, V is voltage and A is current in amperes. For example, if V is 120 volts and A is 10 amperes, P(KVA) = VA/1000 = (120)(10)/1000 = 1.2 KVA.

What is the rating of autotransformer?

Explanation: VA rating of autotransformer is = [1/1-a] * VA of two-winding transformer, thus, when a i.e. transformation ratio of autotransformer becomes closer to 1 one gets very high value of VA rating of an autotransformer.

What is kVA rating of transformer?

kVA stands for Kilovolt-Ampere and is the rating normally used to rate a transformer. In many circumstances the power required by the load is equivalent to the rating of the transformer expressed in either VA or kVA. For example a 1KW (1000 Watts) load would require a 1kVA transformer @ unity power factor.

How do you calculate transformer rating?

Calculate the current from the voltage/amperage (VA) specification or the power rating designated in watts. Both figures mean basically the same thing. Divide either the VA or wattage rating of the transformer by the voltage. This will give you the current rating.

Is kVA equal to kW?

This unit is equivalent to 3,600,000 joules. The kilovolt-ampere (kVA) is the power rating of a circuit conveying 1,000 volts and an ampere or 1,000 amperes and a volt. A single kilovolt-ampere is comparable to a kilowatt….kVA And kW Relation for AC And DC Circuits.

How many watts is 1kva?

Originally Answered: How many watts does 1kva equal to? Watts are a unit of power and power equals voltage multiplied by the current. So 1 kva equals 1000 volt amps, meaning volts multiplied by amps, therefore equals 1000 watts.

What is the disadvantage of an autotransformer?

The main disadvantage of an autotransformer is that it does not have the primary to secondary winding isolation of a conventional double wound transformer. Then an autotransformer can not safely be used for stepping down higher voltages to much lower voltages suitable for smaller loads.

What is a 3 phase autotransformer?

Introduction 3 Phase Auto Transformers. The three-phase auto-transformer has a single coil that acts both as the primary and secondary coil. They are used for starting induction motors, in audio systems, in power transmission and distribution, and even in railways.

How many amps is 45 kVA?

kVA To Amps Calculator (With Table)

How much current is in 11kv line?

An 11 kV distribution circuit may carry 150 A in each of its three phases, thus transmitting a power of 3 MW. A 400 V final distribution circuit may carry 200 A in each of its three phases, thus transmitting a power of 150 kW.

How to calculate / find the rating of transformer in kVA?

Calculate & Find the Rating of Single Phase & Three Phase Transformers in kVA We know that, Transformer always rated in kVA. Below are the two simple formulas to find therating of Single phase and Three phase Transformers. Find Rating of Single Phase Transformer Rating of Single Phase Transformer: P = V x I.

How to calculate the required kVA rating for three phase?

Actually, The calculation of KVA capacity for a Three Phase Transformer is based on Winding Voltage and Amperage information. The simple formula to calculate the rating of three phase Transformers is: KVA = (√3. V x I) /1000

How to convert MVA ratings into voltage and ampere?

The simple formula to calculate the rating of three phase Transformers is: KVA = (√3. V x I) /1000 Where: V is the voltage (volts) and I is the current (amps). the following figure presents a nameplate of a three phase transformer.

How is the power of a transformer rated?

It is a heart of power systems. The total deliverable apparent power is the rating of the transformer. The unit of apparent power is VA (Volt-Amp). Hence the transformer is rated by the VA only. Sometimes the transformer can be rated by kVA (kilo Volt-Amps) or MVA (Mega Volt-Amp).
