Duplicate

  1. Press Ctrl + D.
  2. Select Edit > Duplicate.
  3. Shift + drag any transformation manipulator while in Object mode (also known as smart duplicating).

How do you create a mirror symmetry in Maya?

Select Symmetry > Object or World from the marking menu. (Ctrl + Shift + right-click or q + click in the scene.) In the Tool Box, double-click the Select tool or one of the transformation tools, and then select Object or World in the Symmetry Settings section of the Tool Settings window.

How do I mirror multiple objects in Maya?

Instead of selecting the group header itself, you can expand the group and then shift+select the items, then do your Mesh->Mirror Geometry.

Where is mirror option in Maya?

SHIFT>RIGHT CLICK (on object)>>MIRROR [OPTIONS]. Select the axis and any other options necessary.

How do you duplicate faces in Maya?

Select the faces to duplicate and choose Edit Mesh > Duplicate > . Set the Duplicate options as follows: If you want the duplicated faces to become their own mesh, turn on Separate duplicated faces. The duplicated faces will be separated into their own separate object.

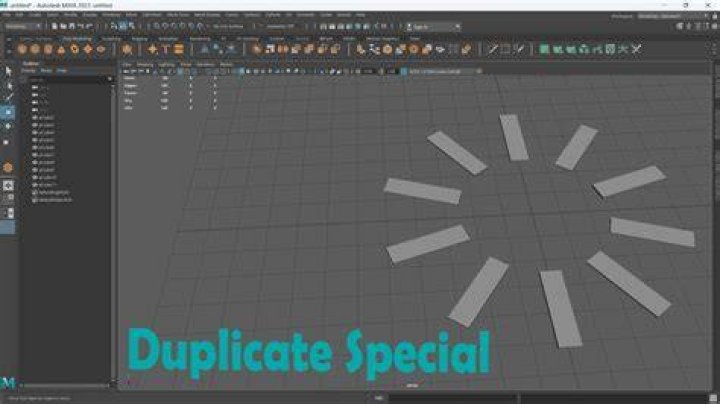

What is duplicate special in Maya?

 Duplicate Special in Maya is a lot different from its cousin, Duplicate. Duplicate Special lets you duplicate objects, change the transformation attributes of the duplicated object(s), and duplicate mulitple objects at a time.

How do I mirror in Maya 2019?

Using Cut Geometry to create a symmetrical mesh interactively

  1. Select a polygon mesh.
  2. Select Mesh > Mirror > .
  3. In the Mirror Settings section, turn on Cut Geometry.
  4. Click Mirror.
  5. Use the manipulator to adjust the plane of symmetry.

How do I use Symmetrize in Maya?

Help

  1. Select the asymmetrical components. (The portion of the mesh that you want to reposition.)
  2. In the main menu bar, select Edit Mesh > Symmetrize (in the Modeling menu set).
  3. Select a mesh edge that is on the seam (axis of symmetry). Maya repositions the selection to match the topology on the opposite side of the mesh.

How do you duplicate polygons in Maya?

How do you duplicate a copy in Maya?

Select Edit > Duplicate. Shift + drag any transformation manipulator while in Object mode (also known as smart duplicating). Select Edit > Duplicate Special > to open the Duplicate Special Options panel. Set the Geometry Type to Copy. Set the options for the number of copies and the transformations to apply to each copy.

Can You Mirror a right hand object in Maya?

Gadget Hacks’ tips — delivered daily. unfortunately maya mirroring works well out of the box only with geometry that has its pivot at 0 on the mirroring axis. which means that if you have a left hand object with the pivot set locally, let’s say at the wrist, and you try to mirror that to get a right hand, it doesn’t work.

How do you duplicate a rig character in Maya?

You can also duplicate the character rig by importing one into your scene, then assigning a namespace to all its joints. Then you can import your second character. You can append a namespace on import. The rigs break because maya detects two joints in the scene with the same name. Sign In or Register to comment.

How to create group node for duplicates in Maya?

Create a new group node for the duplicates. Turn Smart Transform on so that when you duplicate and transform a single copy or instance of the object (without changing the selection), Maya applies the same transformations to all subsequent duplicates of the selected duplicate.
