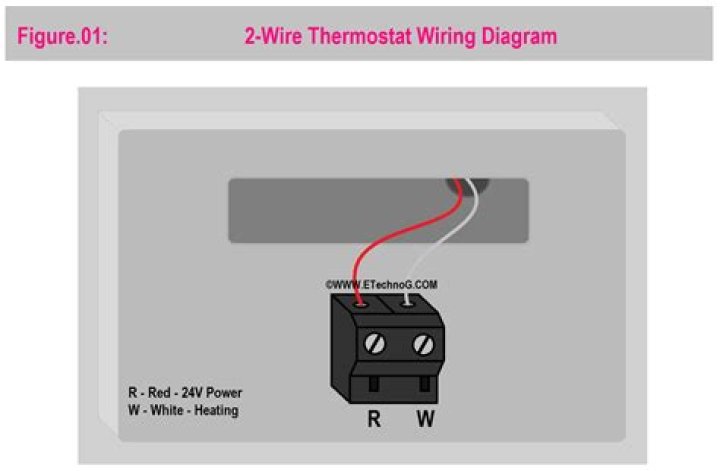

A basic two-wire thermostat can be compared to a simple single-pole switch that you will find throughout your home, only instead of you turning the switch on and off as required, a mechanical or electronic temperature controlled mechanism is the operator of the switch. The terminals are usually marked ‘R’ and ‘W’.

How do you wire a 2 wire thermostat?

Strip the red and white wires back about 1/4 inch at both the thermostat and the furnace ends. Connect the white wire to the “W” terminal on the furnace and thermostat. Repeat this for the red wire, connecting it to the “R” terminal on both the furnace and thermostat.

What is the difference between a 2 wire and 3 wire room thermostat?

The difference between 2 wire and 3 wire thermometer is the “G” or green wire that is usually used for fans. In the 3 wire thermostat wiring, the green wire serves as a repurposed C or “Common” wire. Red wire for power (24V). White wire for heating (connected to W or W1 terminal).

Where does black wire go on thermostat?

5 Wire Thermostat Wiring (Any HVAC Device – Air Conditioners, Heat Pumps, Furnaces, etc.)

  • Red wire for power (24V).
  • White wire for heating (connected to W or W1 terminal).
  • Green wire for fans.
  • Blue or yellow wire for cooling (connected to Y).
  • Black wire for “C” or “Common” wire.

When to use a 2 wire thermostat?

When it comes to low voltage systems, a 2 wire thermostat is usually known as a “ heat only thermostat ” and is used for systems like a gas furnace (with only heating option). A 2 wire thermostat can not be used for hvac systems with cooling option, or heating systems with multi stages or a heat pump.

Where do the white wires go in a thermostat?

Thermostat White Wire (“W1” or “W2” Wire) White wires are for heating. You will find them in gas furnace thermostats, for example, but won’t find them in air conditioner thermostats. W wires go directly to the source of heating; that may be a furnace (gas, electric, oil, you name it) or heat pumps (mini-split heat pumps included).

How can I tell if my thermostat is the same wire as my furnace?

If the wires are different colors, you may have to check the furnace control panel to find which wire is connected to which terminal. The terminals on the control panel have the same letter designations as the thermostat. Be sure to turn off the power to the furnace before wiring the thermostat.

Can a C terminal be wired to a thermostat?

These are transformers that plug into an outlet and deliver 24v. They can be wired directly to the C terminal. Although this will supply the necessary power to your thermostat, you are then either left with an exposed wire coming from the device or you need to find a way to conceal this wire.
