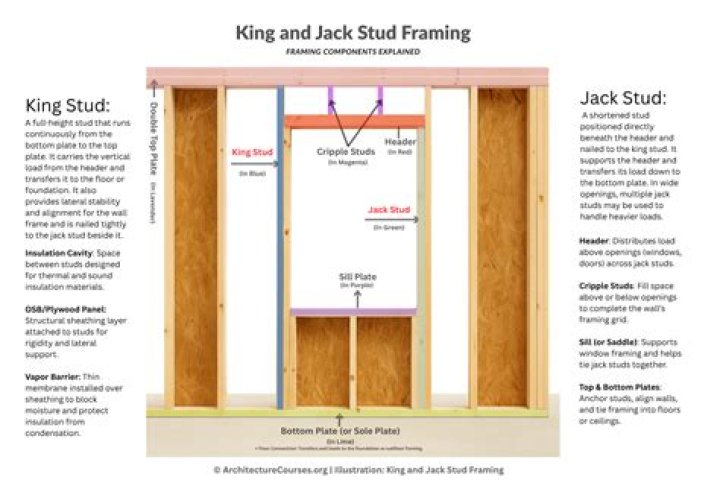

A king stud is a specialized type of stud which is used in post and beam construction to support an opening such as a door or window. Many building codes specifically require the use of king studs to make openings sturdier, and to increase overall structural stability.
What size are jack studs?
If you’re a novice framer then this is the height of the BOTTOM of the window and door headers. This is also the top of the jack studs. Which means the jack studs are 81 inches long (typically).
How many king studs do I need?
How many king studs do I need? But for most ‘standard’ exterior wall construction for a single family residential home using 2×4 studs at 16″ OC, for a 72″ or 78″ wall opening you would usually (see above note about snow loads and total wall loads, etc) need 2 jacks and 2 king studs on each end of the header.
How many jack studs do you need for a header?
The header rests on two “jack” studs abutted by two “king” studs. Leave the area beneath the header open when framing in a door, or add the “cripple” studs at the bottom of the sill if framing in a window.
Are jack studs load bearing?
All use jack studs whether in a load bearing or non load bearing wall.
What’s the difference between a king stud and a king jack stud?
A king stud is one that runs continuously from the top plate to the bottom plate. The jack stud is nailed to the king stud, but it’s shorter as it supports the structural header or the flat 2x material that you use for a door in a non-load-bearing wall. How Many Jack Studs Should Be In the Opening?
What are the Jack studs on a frame for?
The framer attaches the jack studs on the sides of the king studs that face the opening. They are also known as trimmer studs or simply trimmers, and their function is to support the top of the door or window opening, which is known as the header.
How many Jack and King studs on a header?
The number of jack and king studs installed on each side of a header shall comply with Table R603.7 (1). King, jack and cripple studs shall be of the same dimension and thickness as the adjacent wall studs. Headers shall be connected to king studs in accordance with Table R603.7 (2) and the following provisions:
How are King, Jack and cripple studs connected?
King, jack and cripple studs shall be of the same dimension and thickness as the adjacent wall studs. Headers shall be connected to king studs in accordance with Table R603.7 (2) and the following provisions:
