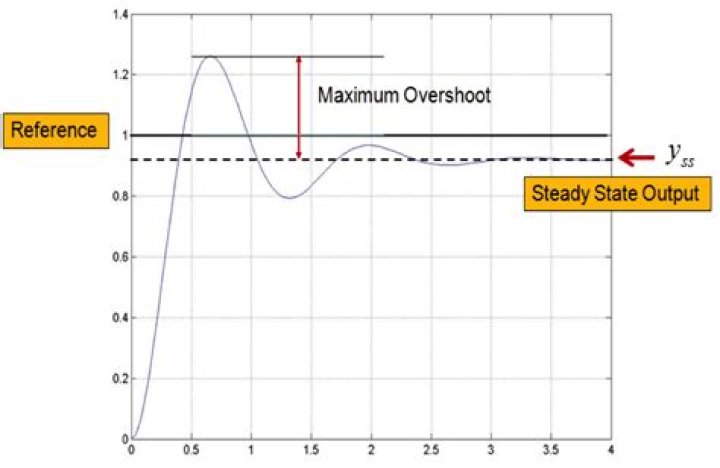

In control theory, signal processing, mathematics, and electronics, overshoot is the manifestation of a function or signal that exceeds its target. It occurs primarily in bandlimited systems, for example, low-pass filters during the step response.
What is the relationship of peak time and overshoot?
Peak time (tp) is simply the time required by response to reach its first peak i.e. the peak of first cycle of oscillation, or first overshoot. Maximum overshoot (Mp) is straight way difference between the magnitude of the highest peak of time response and magnitude of its steady state.
What is rise time and settling time?
Rise time tr: time to get from 0.1y(∞) to 0.9y(∞) Overshoot Mp and peak time tp (note Mp could a percentage overshoot) Settling time ts: the first time for transients to decay to within a specified small percentage of y(∞) and stay in that range.
How do you calculate percent overshoot?
In control theory, overshoot refers to an output exceeding its final, steady-state value. For a step input, the percentage overshoot (PO) is the maximum value minus the step value divided by the step value. In the case of the unit step, the overshoot is just the maximum value of the step response minus one.
How do you reduce peak overshoot?
General Tips for Designing a PID Controller
- Obtain an open-loop response and determine what needs to be improved.
- Add a proportional control to improve the rise time.
- Add a derivative control to reduce the overshoot.
- Add an integral control to reduce the steady-state error.
- Adjust each of the gains , , and.
How do you find rise time?
By default, the rise time is defined as the time the response takes to rise from 10 to 90% of the steady-state value ( RT = [0.1 0.9] ). The upper threshold RT(2) is also used to calculate SettlingMin and SettlingMax .
What is damping ratio formula?
Critical damping coefficient = 2 x the square root of (k x m) = 2 x the square root of (100 x 10) = 63.2 Ns/m. Since the actual damping coefficient is 1 Ns/m, the damping ratio = (1/63.2), which is much less than 1. So the system is underdamped and will oscillate back and forth before coming to rest.
What is the meaning of peak overshoot in control system?
Overshoot can cause distortion, and may result from design parameters intended to decrease the response time of the circuit. Just so, what is meant by peak overshoot? Peak overshoot Mp is defined as the deviation of the response at peak time from the final value of response.
What is the formula for the peak overshoot MP?
Peak overshoot Mp is defined as the deviation of the response at peak time from the final value of response. It is also called the maximum overshoot. Mathematically, we can write it as Mp = c(tp) − c(∞)
Which is the best definition of maximum overshoot?
Maximum overshoot is defined in Katsuhiko Ogata’s Discrete-time control systems as “the maximum peak value of the response curve measured from the desired response of the system.”
What is rise time, time to 21 peak overshoot?
Sample second-order response with graphical estimates of rise time, time to 21 peak overshoot, and settling time. Rise time, Tr: The time for the response to rise from 10% to 90% of steady state. Settling time, Ts: The time for the response to settle within ± 5% of the steady-state value.
